Every yacht leaving Cairns for Torres Strait, Papua New Guinea, or Indonesia carries the same piece of equipment that could end the passage before it begins - or end it badly in the wrong anchorage at the wrong moment. The anchor windlass and the ground tackle it handles are the system that allows a boat to stop: to hold position in a squall, to wait out a tidal window in a remote passage, to sit safely on a coral shelf while the crew sleeps. Between Cairns and the Arafura Sea, the anchoring situations ahead are some of the most demanding in Australian waters. A professional inspection before departure is not caution for its own sake; it is the difference between a system you can trust and one you are merely hoping will work.
Why the Anchor System Earns Pre-Passage Priority
Engine failure leaves you drifting but usually salvageable. A torn sail ends a race, not a life. A failed anchor system in the wrong place - a current-swept passage, a lee shore, a coral anchorage in building weather - removes the single most reliable tool for stopping the boat and buying time. For yachts departing Cairns, that scenario is not hypothetical.
The Torres Strait demands anchoring capability that most coastal sailors have never tested. Tidal currents through some passages reach seven knots, and a boat dragging in that environment is not going sideways gently - it is being swept into shipping lanes, shoals, or reefs at a pace that outstrips most crews' ability to respond. North of the Strait, PNG anchorages sit over coral and sand in eight to twelve metres, often with little swinging room, and the weather can turn from settled to squall conditions within an hour. Further west, Kimberley tidal ranges impose their own scope demands. In every case, the anchor system is not backup equipment - it is primary infrastructure.
Experienced offshore sailors and the technical press consistently make the same finding: most windlass failures at sea result from deferred maintenance rather than manufacturing defects. The gear that seemed adequate in a calm Cairns marina, used once a month on weekend trips, behaves differently when it is deployed and recovered daily in tropical salt water, under load, in heat. Pre-passage inspection is the moment to discover problems - not at anchor in a coral lagoon north of Thursday Island with wind in the forecast.

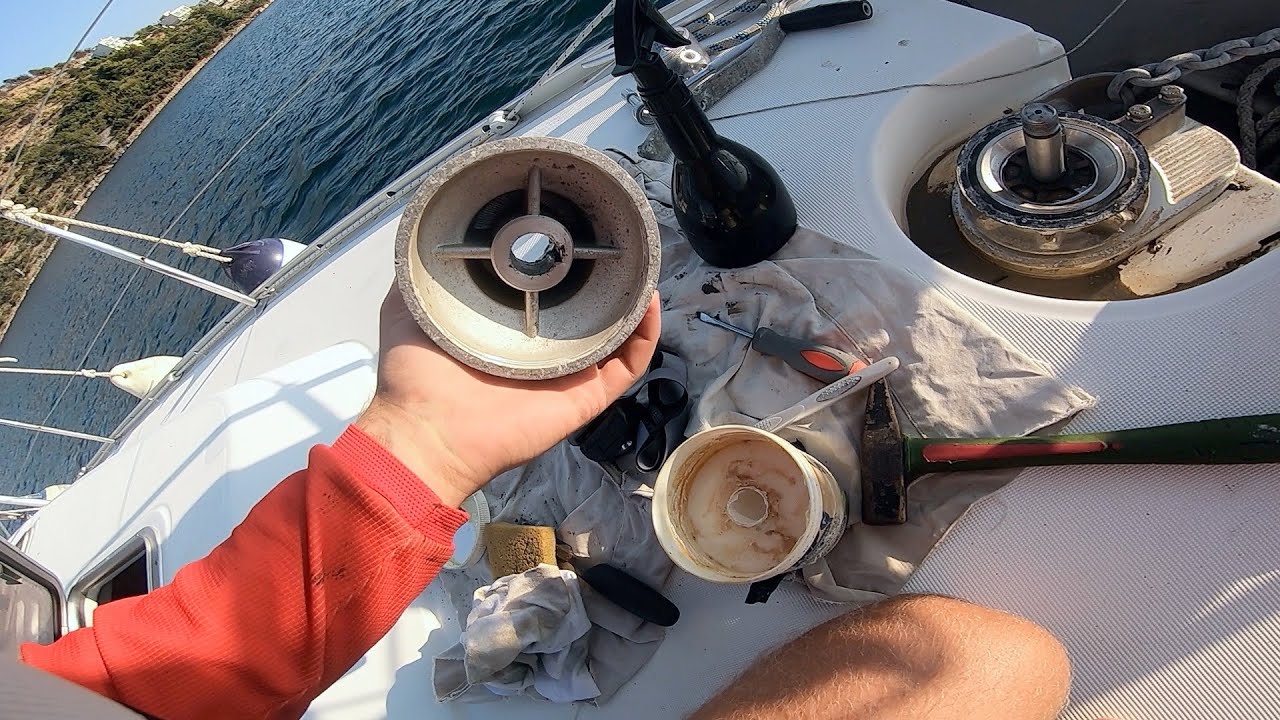

The Windlass Motor and Gearbox
A typical offshore cruising windlass draws between 80 and 150 amps during operation. At that current, any weakness in the motor - worn brushes, corroded commutator segments, signs of heat damage on the armature - will eventually show under sustained load. What it will not do is show up during a brief test in the marina. A professional inspection opens the motor housing, checks brush length and bedding, examines the commutator for scoring and burn marks, and assesses the armature windings for thermal damage. An owner checking the windlass from the bow cannot do any of that.
The gearbox is the other half of the equation. Oil-filled windlass gearboxes should have the oil inspected and replaced at least annually. The oil tells the story directly: fresh oil is clear amber; oil showing white emulsification or a grey milky colour has absorbed water, meaning a seal has failed and the gears are running in a mixture that accelerates wear. In a tropical climate where boats sit in rain, spray, and humidity year-round, seal degradation happens faster than in temperate waters. A gearbox running on emulsified oil is not about to fail - it has already begun to fail, and the outcome is a stripped or seized mechanism at the worst possible moment.
Thermal damage signs on the motor - discoloured windings, heat-cracked insulation, burn marks on terminals - indicate the motor has been overloaded repeatedly, often because the electrical supply was inadequate. That points directly to the next area of inspection.
Electrical Systems: Solenoids, Contactors, Wiring and Deck Penetrations
A windlass drawing up to 150 amps requires dedicated wiring from the battery bank, sized for the actual run length. Cable cross-sections of 25mm² or 35mm² are typical for runs longer than four metres; undersized cable creates voltage drop that starves the motor, forcing it to draw more current to maintain torque, which in turn overheats the cable and accelerates contact failure in the solenoid and contactor. This failure chain is progressive and invisible until something stops working under load.
In Cairns, with an average ambient temperature around 27 degrees Celsius year-round and anchor lockers that run significantly hotter when closed in afternoon sun, solenoid and contactor life is measurably shorter than in temperate climates. Every time the windlass is activated, the solenoid contacts close under high current and open again, generating heat. In a hot locker, contacts cool more slowly, insulation ages faster, and pitting develops on the contact faces over a shorter cycle count than the manufacturer's temperate-climate rating assumes. Burned, pitted contacts can pass a continuity test at rest but fail to carry working current when the motor is actually lifting chain.
This is why foot switches and helm-mounted remote controls must be tested under actual working load during a service, not just checked for switch function at the console. The internal contactor can develop failed contacts that show continuity but cannot handle the current draw of the motor under chain load. Checking continuity at the switch proves the switch works; it does not prove the circuit can carry 100 amps.
Deck penetrations where wiring exits the anchor locker are a corrosion entry point that is easy to overlook. Degraded or cracked cable glands allow water to track down the wiring into the locker, sitting at the base of the terminal connections. Salt water and high-current electrical connections produce a predictable and accelerating result.
The Gypsy and Clutch: Where Most Field Failures Begin
The gypsy - the toothed wheel that engages the chain - must be matched exactly to the chain it handles. Even a one-millimetre mismatch between chain calibration and gypsy specification causes the chain to ride up out of the gypsy pockets under load. Running 10mm chain in a gypsy sized for 8mm chain is the clearest example: the links are too wide to seat correctly, and the windlass becomes functionally useless at the moment it is most needed. This calibration mismatch is the single most common reason a windlass fails in the field - not electrical failure, not motor failure, but a simple dimensional incompatibility that was never verified.
Before departure, confirm the chain size documented for the windlass against the actual chain on board. If chain has been replaced at any point by any previous owner, verify the specification matches the gypsy. Do not assume that chain sold as a given nominal size matches the gypsy calibration for that nominal size without measuring - chain manufacturers vary slightly in calibration, and a mismatch across the wire diameter of even a millimetre will cause the chain to ride out under load.
The clutch cone allows the windlass drum to disengage so chain or rope can be paid out freely by hand. Worn clutch cones do not engage cleanly - the drum slips intermittently or fails to hold the rode on a steep retrieve. A slipping windlass under load is not just inconvenient; it is a safety problem when the crew is trying to hold position in current while recovering the hook. Clutch adjustment is straightforward on most designs but requires disassembly to inspect the friction surfaces properly and confirm the adjustment will hold under working load.
Chain Inspection: What to Look For and When to Replace
A proper chain inspection cannot be done in the locker. The entire length must come out onto a hard surface where it can be laid flat and examined link by link. This is work that most owners defer, and it is precisely why it matters.
- Flake the entire chain out on a hard flat surface - a dock, a hard-stand area, or a jetty - so every link is accessible and visible without handling chain that is piled on itself.
- Walk the full length looking for rust that has penetrated through the galvanising to the base metal, links showing deformation or visible bending, and any link that looks noticeably different in shape or colour from its neighbours.
- At intervals along the chain, measure a run of ten links and compare against the nominal new-chain dimension for that grade and size. Links that have stretched more than ten per cent from new specifications indicate fatigue or overload - retire the chain from that point back toward the anchor.
- Examine the connecting links, joining shackles, and any swivels for wear, cracking, or corrosion that differs from the chain body itself, paying particular attention to areas where the chain contacts the gypsy repeatedly.
- Mark any section of concern with paint or tape and document its position from the bitter end so you know exactly when that section enters the water at a given scope.
Grade G40 high-test and G70 chain both carry a typical galvanised service life of five to seven years before the zinc coating degrades enough to require re-galvanising or replacement. In tropical salt water with frequent use, that timeline shortens noticeably. Chain arriving in Cairns after years in Indonesian or PNG waters may look superficially intact while being well past safe service life. Re-galvanising is economical when the base metal is still in good condition; when links are pitted, deformed, or stretched, renewal is the correct decision.
| Chain type | Strength vs G40 | Weight for equivalent holding | Corrosion warning | Tropical coral anchorage suitability |
|---|---|---|---|---|
| G40 galvanised | Baseline | Heavier | Rust visible before structural loss | Good - preferred |
| G70 galvanised | Around 25% stronger | Lower for same holding strength | Rust visible before structural loss | Good - preferred, lighter bow |
| Stainless steel chain | High | Similar to G40 | No visible warning before crevice failure | Not recommended in tropical mud or coral |
G70 chain is approximately 25 per cent stronger than G40 for the same nominal diameter. For boats already carrying significant bow weight, the ability to run a lighter chain at equivalent holding strength is a genuine advantage - not just in sailing performance but in the load imposed on the windlass mounting and bow structure when the boat is pitching in a seaway with 70 metres of rode out.
Anchor, Swivel, Shackles and Connecting Hardware
The anchor itself is the simplest component to inspect and the most ignored. A bent shank - from a hard set in rock or coral - changes the angle at which the anchor presents to the seabed and degrades holding dramatically. Run a straightedge along the shank and across the fluke arms. Look for cracks at weld points and at the base of the shank, particularly on aluminium anchors subjected to repeated hard sets. A crack in a highly loaded structural weld is not a repair job - it is a replacement.
Shackle pins seize in salt water, and a seized pin cannot be removed under emergency conditions. Every connecting shackle should be cleaned, inspected, and the pin confirmed to turn freely before final mousing with stainless wire. A pin that will not move at the dock will certainly not move at anchor in the dark in a squall. Check the mousing on every shackle in the system - mousing that has corroded through is not securing anything.
Swivels serve a genuine purpose in reducing rode twist, but the solution to twist is a properly sized anchor with correct fluke geometry, not a swivel that introduces a potential failure point in the system. If a swivel is necessary, galvanised steel is the appropriate material for tropical muddy anchorages. Plain hot-dip galvanised chain and hardware corrode from the outside and show rust before losing structural integrity, giving the crew time to act. Stainless corrodes invisibly in the anaerobic sediment where it is most likely to be buried.
- Inspect mousing on every shackle in the system - bow shackle, connecting shackles, any joining links
- Check anchor fluke welds and shank for bending under a straightedge
- On aluminium anchors, look specifically for galvanic corrosion where the shank contacts the chain through any steel fitting
- Any swivel in the system should be galvanised steel, not stainless, for the passages ahead
Windlass Mounting, Deck Hardware and the Anchor Locker
The windlass mounting transfers all chain-load forces into the deck and supporting structure. The mounting bolts must pass through the deck into a solid backing plate - aluminium, stainless, or dense fibreglass - at least as large as the windlass footprint. On boats arriving in Cairns after extended tropical passages, deck-core delamination around the mounting fasteners is a frequent finding. The core - typically balsa or foam in modern construction - absorbs water when through-deck fasteners lose their sealant over time. A delaminated core provides almost no resistance to the pull-out load a working windlass imposes. The deck surface may look fine; the failure is invisible until a fastener suddenly has no purchase and the windlass shifts under load.
A shipwright inspection of the mounting area - probing the deck around the fasteners, checking for soft spots, and assessing movement under applied load - adds something that an electrical check alone cannot reveal. These are different trades looking at different failure modes in the same critical structure, and a boat with a healthy motor and a delaminated mounting is still a boat with a dangerous windlass.
The windlass minimum rated pull should be at least three times the total weight of the expected ground tackle - anchor, chain, and connecting hardware combined. In Torres Strait conditions, where tidal current imposes horizontal load far above calm-water anchoring, that margin is not conservative padding - it is the minimum for the conditions ahead.
- The chain stopper bar or snubber cleat must be functional and rated for the loads involved - the windlass should never carry chain load at anchor, with that static tension transferred to a robust deck fitting instead
- Test the chain counter if fitted - an accurate counter is essential for managing scope in low-visibility conditions where the crew cannot count chain over the bow
- Clear the anchor locker drain completely - a partially blocked drain allows the locker to fill after rain or spray, adding substantial water weight forward that stresses mounting hardware, affects sailing trim, and concentrates salt water around the wiring at the base of the locker
- Inspect the locker interior for chain chafe on any wiring runs and confirm no bare cable contacts the chain in normal stowage
The Bitter End and Emergency Release
The bitter end - the inboard end of the chain inside the locker - is the last connection in the system and the one that receives the least attention at any annual service. In an emergency where the boat is dragging toward a reef with no time to recover chain, the crew must be able to slip the entire anchor and rode in seconds. That requires the bitter end to be attached in a way that releases under load, by one person, in the dark, under pressure.
A shackled connection with no quick-release capability at the bitter end is a genuine offshore safety deficiency - not a minor oversight, but a system that cannot perform its emergency function when it is needed most.
The correct arrangement is a short length of line connecting the final chain link to a strong structural point inside the locker. Chain is too rigid to tie and cut quickly; line can be released by knife in seconds. The attachment point must be structural - a properly backed padeye or throughbolt cleat, not a locker shelf fitting. The end of the line must be immediately accessible without moving chain out of the way. A fixed knife mounted within arm's reach of the bitter end completes the system. A shackle pinned directly to a stainless bracket with no release capability does not meet offshore safety requirements, regardless of how tidy it looks.
- The bitter end attachment must be reachable by one crew member without clearing chain first
- The release must work under tension - test it by putting load on the system before departure, not just checking it visually
- A fixed knife must be within arm's reach of the bitter end, mounted permanently in the locker
- The line used for the bitter end should be inspected for chafe at every chain inspection and replaced when worn
What the Passages Ahead Actually Demand
At a 7:1 scope ratio in ten metres of water, 70 metres of rode must be deployed. Many cruising boats leave Cairns carrying 50 metres of chain on the assumption they will anchor in shallower water. That assumption does not survive contact with PNG and Torres Strait reality, where eight to twelve metres in the anchorages themselves is common, holding can be patchy over mixed sand and coral, and conservative scope is necessary to keep the anchor working correctly in wind and current. A boat carrying only 50 metres of chain in those conditions is under-resourced, not travelling light.
Chain behaviour on coral is different from chain on sand. On coral-bottomed anchorages typical of Torres Strait and PNG, chain wraps around coral heads as the boat swings, shortening effective rode length and creating abrasion points where the chain contacts coral edges under surge. Setting more initial scope, assessing bottom type carefully before committing, and being ready to recover and reset if holding looks questionable are all more valuable in these anchorages than a fast windlass. Galvanised chain shows abrasion and wear honestly through surface rust, allowing inspection of damaged sections before they re-enter the water. Stainless chain in the same conditions gives no such warning.
For boats continuing west to the Kimberley after PNG, tidal range increases substantially - a factor that affects rode calculations at every stop. A scope ratio calculated at low water will be short at high tide. Chain lying flat at low tide angles steeply at high tide, reducing its catenary cushioning. Planning rode requirements for the maximum anticipated water depth at high tide, not the charted depth at low tide, is the correct approach and requires more total chain than coastal cruisers typically carry.
The windlass rated pull requirement ties all of this together. Torres Strait current loads, PNG coral anchorages, and Kimberley tidal swings all impose forces on the anchor system that calm-water marina testing does not replicate. A windlass that operates smoothly in Cairns Harbour has not been tested for what lies two weeks north. The time to know the system will handle those conditions is before the boat leaves the dock.
Frequently Asked Questions
How far in advance should I book a professional anchor windlass service before a Cairns offshore departure?
Book at least two to three weeks before your intended departure date. A thorough service - covering the motor, gearbox oil, electrical system, gypsy calibration, and deck mounting inspection - typically takes a full day, longer if parts need ordering. Cairns has solid marine trade access but some windlass-specific components require freight from southern states or overseas, and that lead time can determine whether a problem found during inspection can be resolved before you sail.
My windlass works fine at the marina - why would I pay for a professional inspection before leaving?
A windlass operating unladen in calm water is passing the easiest possible test. The failures that matter - burned contactor contacts that carry no load, emulsified gearbox oil destroying the gear teeth, delaminated deck core around the mounting bolts - produce no symptoms under light-duty marina use. They emerge under sustained load, in heat, in salt water, days from the nearest boatyard. A professional inspection creates the conditions needed to find those failures while there is still time and access to fix them.
Can I simply replace my galvanised swivel with a stainless one to avoid surface rust?
Stainless steel has the opposite vulnerability to galvanised in tropical anchorage conditions. It corrodes internally, in the oxygen-depleted sediment where a buried swivel sits, without showing any external change until it fails suddenly. Galvanised steel corrodes from the outside and shows rust before losing structural integrity, giving visible warning. If a swivel is necessary, galvanised is the appropriate material for PNG and Torres Strait conditions; many experienced offshore sailors remove the swivel entirely and manage rode twist through anchor choice and deployment technique instead.
How do I confirm my chain is the correct size for my windlass gypsy?
The windlass manufacturer specifies which chain grades and sizes the gypsy handles, documented on the unit or in the original paperwork. Measure your chain links directly - wire diameter and outside link length - and compare against the manufacturer's specification for your gypsy. Do not assume that chain sold at a given nominal size matches the gypsy calibration for that nominal size without measuring, because chain manufacturers vary slightly in calibration, and even a small dimensional mismatch can cause the chain to ride out of the gypsy under load, making the windlass useless.
What is the correct way to rig the bitter end of the chain inside the anchor locker?
Connect the final chain link to a structural point inside the locker using a short length of line - not a fixed shackle pinned to a bracket. The line allows the connection to be cut or slipped under load in an emergency. The attachment point must be genuinely structural, the end of the line must be immediately accessible without moving chain, and a fixed knife should be mounted within arm's reach. Test the release by putting actual load on the system before departure - checking it visually is not sufficient confirmation that it will release under the tension of a dragging boat.
Is G70 chain worth specifying over G40 for offshore passages from Cairns?
The primary case for G70 is weight: for equivalent holding strength, a G70 chain can be run at a smaller nominal diameter, saving meaningful weight forward on boats already heavy in the bow. Both grades are available in hot-dip galvanised and behave similarly in terms of corrosion warning - surface rust before structural loss. Before switching grades, confirm that your windlass gypsy is specified for G70 in the chosen diameter; G70 calibration dimensions differ from G40 in the same nominal size, and running the wrong chain in an unmatched gypsy is the most common reason windlasses stop working in the field.
