The mast on a well-maintained offshore yacht gets scrutinised from masthead to partners before any serious passage. The rigging wire is checked for broken strands, the swages for cracking, the sheaves for wear. The chainplates - the steel plates that anchor the entire rig to the hull and transfer every load those wires carry into the structure - typically get a glance and a tick. That gap in inspection practice is the single most dangerous oversight a sailor can carry out of Cairns, because the section of a chainplate most likely to be critically corroded is completely invisible during any above-deck or below-deck inspection without removal. For a vessel outbound for the Torres Strait, the Coral Sea or the Timor Sea, that invisible failure point is worth taking seriously.
Why Chainplates Need More Than a Rigging Checklist Tick
A standard pre-passage rigging survey covers a lot of ground. Swage integrity, wire diameter, toggle alignment, turnbuckle thread engagement - all of it matters. What it does not address is the structural integrity of the steel plates anchoring those wires to the boat. A chainplate can be clean and rust-free at deck level and spotless inside the cabin while being 80% corroded at the mid-deck section where the plate contacts trapped moisture - exactly where structural load is highest and stress concentration is greatest.
That is not a theoretical risk. Crevice corrosion progresses silently inside deck laminates for years without producing visible rust, discolouration or any surface sign. By the time a chainplate shows external symptoms, significant structural damage is typically already present. Offshore, a rig failure from a corroded chainplate means a mast over the side, a deck fitting ripped out, and a crew managing the aftermath in open water.
Cairns is the final practical haul-out point before several major offshore routes: the Torres Strait transit north to Darwin, the Coral Sea crossing to Vanuatu and New Caledonia, passages into Indonesian waters. The concentration of maintenance work during a Cairns haul-out - antifouling, osmosis treatment, rigging surveys, engine servicing - makes it easy for chainplates to become a checkbox rather than an investigation. The nature of crevice corrosion means they should be investigated.
The Anatomy of a Chainplate System
Understanding the system's components makes it clear where failures originate and which parts of an inspection can be done in-place versus which require removal.
- The plate itself - flat or bar-stock steel, running from a bolted connection below decks (to a structural bulkhead, floor beam or hull laminate) up through the deck, terminating above in a clevis pin hole that accepts the shroud toggle.
- Through-bolts and backing plates - fasteners clamping the plate to its structural support below decks, with a backing plate distributing load across the support surface. Bolt-hole elongation and backing plate corrosion are secondary failure points independent of the plate condition.
- The deck penetration slot - where the plate passes through the deck laminate. This slot is sealed at the deck surface with bedding compound. It is the primary site of crevice corrosion and the primary water ingress path into the deck core.
- Tangs and toggles - the clevis-pin hardware at the plate top and the shroud base. Visible and inspectable during normal surveys; not the hidden failure point.
The deck penetration is the failure zone. Above it, the plate is exposed to air and easily inspected. Below decks, the plate surface can be touched and examined. The mid-section - sealed inside the laminate between deck surface and cabin headliner - sees none of that attention. It sits in trapped moisture, cut off from oxygen, for years.
How Crevice Corrosion Works - and Why It Targets the Section You Cannot See
Stainless steel resists corrosion because of a thin, self-renewing passive oxide layer that forms when the metal surface is exposed to oxygen. Remove that oxygen supply and the passive layer fails. The underlying metal corrodes aggressively.
That is exactly what happens inside a deck chainplate slot. Seawater infiltrates through imperfect sealant. It fills the narrow gap between plate and laminate. The initial corrosion reaction consumes dissolved oxygen in that trapped water. Once depleted, oxygen cannot be replenished - the gap is sealed. The result is a localised oxygen-depleted cell where the stainless steel behaves more like mild steel, and corrosion propagates inward from the plate-to-laminate interface.
316L stainless outperforms 304 in this environment because its higher molybdenum content - in the 2-3% range - resists chloride-induced pitting. 304 stainless is prone to crevice corrosion when seawater becomes stagnant behind deck sealant. Even 316L is not immune once the mechanism initiates; the alloy buys time but does not eliminate the failure mode. Dye penetrant testing can reveal surface-breaking cracks on accessible plate sections, but it cannot detect corrosion hidden inside the laminate. Removal is the only way to know what the mid-section actually looks like.
Why Far North Queensland Compresses the Failure Timeline
Industry guidance on standing rigging components notes that failures begin appearing statistically around the ten-year mark. Chainplates are subject to the same fatigue and corrosion timeline but are inspected far less often than the wires they anchor. That guidance, moreover, was largely derived from temperate sailing environments - northern Europe, the US east coast, southern Australia. Far North Queensland is not a temperate environment, and applying a temperate timeline to a Cairns-based vessel is an error.
Three environmental factors drive the acceleration.
Salt deposition rate. Tropical coastal surfaces accumulate salt at rates far exceeding temperate marine environments. In FNQ, every fitting that is exposed or semi-exposed carries a high continuous chloride load. Higher chloride concentration accelerates pitting initiation and crevice corrosion propagation directly.
Time of wetness. Corrosion does not advance when metal surfaces are dry. "Time of wetness" - the proportion of time a surface carries a conductive moisture film - is the primary driver of corrosion propagation rate. Far North Queensland's year-round high humidity, heavy monsoonal rainfall from November through April, and persistent dry-season dew mean that fittings in Cairns are wet for a far greater fraction of the year than the same fittings in Perth, Melbourne or any Mediterranean port. That extended wetness period multiplies the corrosion rate relative to drier climates.
Thermal cycling. Daytime heat in FNQ causes deck laminate, sealant and metal to expand at different rates. Cooler nights reverse the cycle. That daily expansion and contraction fatigues sealant bonds over time, progressively opening microscopic gaps that allow water into the slot. Sealant that would remain sound for years in Auckland can fail in half that time in Cairns.
Beyond routine corrosion, any vessel that has been moored through a cyclone or cyclone-adjacent event will have experienced shock loading on the rig qualitatively different from normal sailing loads. Those events do not always leave visible evidence, but they introduce fatigue damage at stress concentration points - including the deck slot edge where the plate bends under lateral load.
Then there are the passage loads specific to Cairns departures. The Torres Strait transit, the Coral Sea crossing and the Timor Sea passage each impose sustained trade-wind and swell loading on standing rigging attachment points for days at a stretch - continuous tension cycling that is exactly the condition accelerating fatigue crack propagation in already-stressed or partially corroded plates.
Reading Warning Signs From Deck and Cabin
Full inspection requires removal. But a systematic survey from deck and cabin establishes urgency and prioritises where to start.
- Rust streaks on deck - brown or orange runs extending from a chainplate toward drain channels. Confirms active corrosion and moisture cycling through the slot. Does not indicate severity, but rules out nothing.
- Cracked, hard or peeling sealant - any gap or adhesion failure in the deck bead is a confirmed water ingress path. The older and harder the sealant, the longer it has been failing. Polyurethane sealant that has been through years of FNQ thermal cycling is likely failing regardless of appearance.
- Water staining or tide marks inside the cabin - on the headliner, on the hull side, or on the bulkhead adjacent to the below-decks attachment. Repeated wetting and drying marks show water has been entering for some time.
- Soft or spongy deck - pressing firmly on the deck adjacent to a chainplate and feeling movement or softness indicates core degradation. The core has absorbed water and lost structural integrity.
- Surface discolouration on the visible plate above decks - mild rust or dark staining on the exposed plate section above the sealant suggests active corrosion. Because crevice corrosion works inward, surface signs almost always lag behind sub-surface damage.
Any single sign from this list should move that chainplate to the top of the inspection queue. Multiple signs from the same fitting should be treated as near-confirmation that significant hidden damage is present.
What a Professional Inspection in Cairns Involves
A genuine chainplate inspection is a removal and examination procedure, not a visual survey. A qualified rigger or shipwright should work through the following sequence:
- Remove the shroud and disconnect the toggle. The rig must be supported before any plate is unfastened - either through temporary alternative stays or by working one plate at a time where remaining shrouds provide adequate support.
- Strip the sealant bead from the deck surface around the slot. Work carefully to avoid enlarging the slot or damaging the laminate at its edge.
- Unfasten the below-decks bolts and withdraw the chainplate upward from the slot. On some older production boats, plates cannot be removed upward because internal joinery blocks the path - a design defect that should be corrected during refit.
- Full visual examination of the plate, focusing on the section that sat inside the laminate. Look for pitting, etching, corrosion product (black or brown scaling), section loss and deformation at the slot-edge bend.
- Dye penetrant testing of accessible plate surfaces to detect surface-breaking cracks. Apply penetrant, allow dwell time, remove excess, apply developer, inspect in adequate light. This catches fatigue cracks at slot edges and near fastener holes invisible to the naked eye.
- Dimensional check - measure actual plate thickness at the corroded section and compare against the specification for the turnbuckle size served. The minimum thickness requirements vary by hardware size, and many OEM chainplates on production boats were installed at or below those minimums from new.
- Written report with photographs - images of each plate before and after removal, measurement records, dye penetrant results. This documentation satisfies insurer requirements and establishes a baseline for the next inspection.
Australian marine insurers increasingly require documented evidence of a professional rigging inspection - including chainplates - before granting offshore passage coverage. A written report from a qualified rigger or shipwright in Cairns satisfies that requirement. Confirm with your insurer what level of documentation they need before scheduling work, not after, so the report reflects the final installed condition.
Removal is the only definitive inspection method for crevice corrosion hidden within deck laminate. All other approaches assess probability; only removal confirms condition.
The Deck Core Cascade: How a Leaking Chainplate Becomes a Structural Job in the Tropics
Water that enters the deck slot does not stay at the chainplate. It wicks laterally into the deck core - the structural foam, balsa or plywood layer sandwiched between the outer and inner fibreglass skins. Once the core is wet, it degrades. In temperate climates, wet balsa can survive years before delamination becomes structurally significant. In Far North Queensland, the heat-moisture cycle accelerates that degradation dramatically.
During the day, high temperatures drive moisture deeper into the core and toward the inner skin. At night, cooling reverses the migration. This daily pumping repeatedly rewets the core material, and in FNQ's heat, bacterial decay of organic materials - balsa and low-grade plywood in particular - proceeds far faster than in cooler climates. The result is progressive softening, delamination and, in advanced cases, complete void formation under the deck skin, often extending well beyond the original slot.
Recognising the extent of this damage during a haul-out - when the boat is already out of the water, scaffolding is accessible and trades are on site - prevents the work from becoming a later emergency or a far more expensive standalone intervention.
To assess damage spread: tap the deck surface with a small mallet or coin in a grid pattern around each chainplate. A dull, hollow sound against the normal sharper ring of sound laminate indicates delamination. A moisture meter applied to the inner deck skin gives quantitative readings. Any area with elevated moisture content extending beyond the immediate slot perimeter should be opened and assessed by a shipwright before rebedding proceeds.

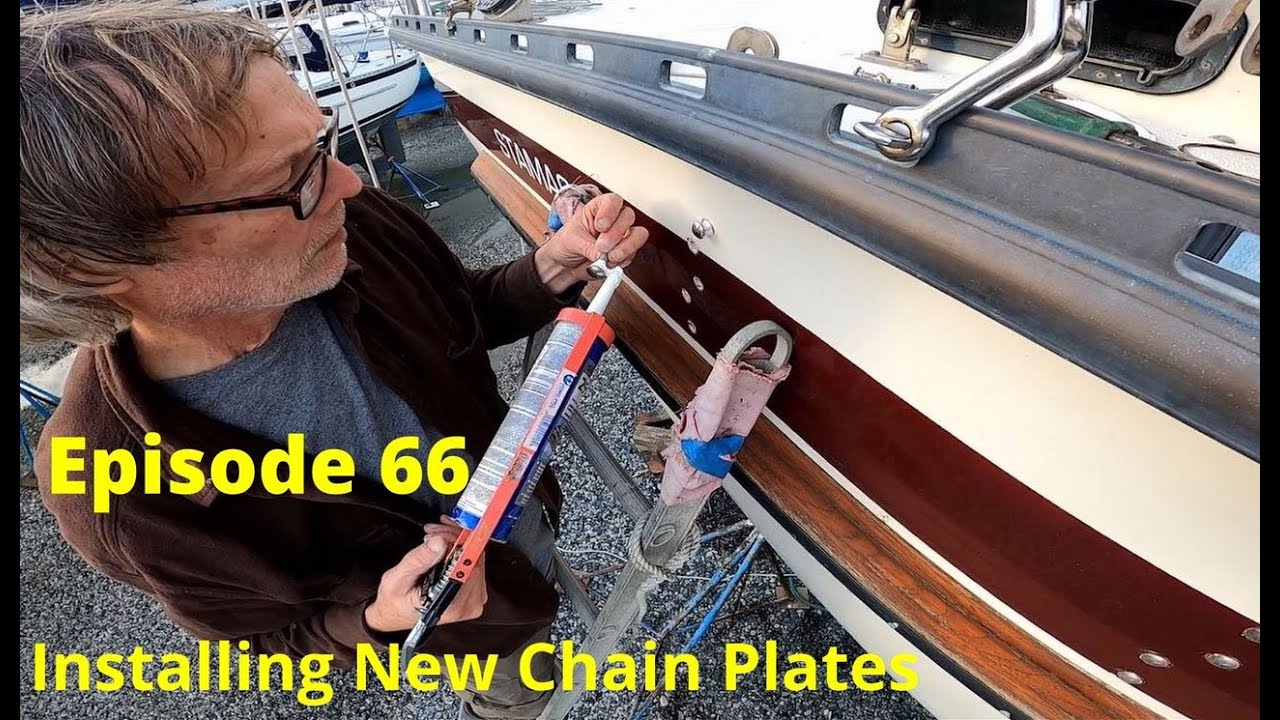

Replacement and Rebed: Material, Sealant and Slot Encapsulation
When a plate fails inspection - through section loss, cracks or dimensional non-conformance - replacement is straightforward if material selection and procedure are handled correctly.
| Material | Corrosion resistance in tropical marine use | Strength relative to 304 | Weight | Practical fit |
|---|---|---|---|---|
| 304 stainless | Lowest - prone to crevice attack behind sealant | Baseline | Standard | Avoid for replacements in FNQ |
| 316L stainless | Higher - molybdenum resists chloride pitting | Slightly lower - requires thicker bar stock | Standard | Correct standard replacement for most cruising yachts |
| Titanium | Highest of the metals | High | Lighter | Performance and refit builds - higher fabrication cost |
| Composite (carbon or glass) | Immune - no crevice corrosion mechanism | Layup-dependent | Lightest | New builds or major structural refit only |
A critical specification point when using 316L: because 316L has lower tensile strength than 304, a replacement plate must be cut from thicker bar stock than the 304 original to maintain the same safety factor. The plate dimensions are also specific to the turnbuckle size being served - verify this against the hardware on your rig. Many OEM production-boat chainplates were undersized from the factory; replacement is an opportunity to correct that.
On surface finish: specify high-gloss polish on any 316L plate. A mirror-polished surface resists corrosion longer than satin-finished plate in tropical conditions because surface roughness provides nucleation sites for pitting in salt-laden air. The difference in longevity in FNQ conditions is worth the extra finishing cost.
On sealant: butyl tape, not polyurethane. Butyl remains permanently flexible under cyclic load and never hardens, shrinks or loses adhesion the way cured polyurethane does over years of tropical thermal cycling. Replacing a failed polyurethane bead with fresh polyurethane repeats the same failure on a shorter timeline.
Before any plate is rebedded, encapsulate the deck slot walls with thickened epoxy. This creates a permanent waterproof barrier around the core material at the slot faces. When surface sealant eventually admits a trace of moisture - and it will, over a long enough time - that moisture contacts sealed epoxy rather than raw core. The core stays dry regardless of what happens at the surface. Composite chainplates laminated directly into the hull structure eliminate the deck penetration point and the crevice-corrosion mechanism entirely, which is why Category A offshore vessels increasingly use them for new builds - but retrofitting them into an existing production hull is a structural refit, not a maintenance item.

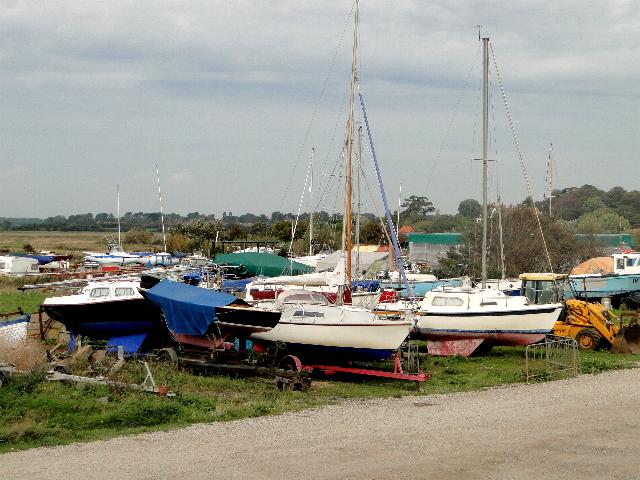

Fitting Chainplate Work Into a Cairns Haul-Out Schedule
Sequencing matters. Chainplate work has direct interaction points with other haul-out items, and poor ordering creates redundant labour and material cost.
- Rig down first - if the mast is coming out for full inspection or replacement, remove it before any deck work begins. This removes all load from deck fittings and allows chainplate withdrawal without needing to support individual shrouds.
- Chainplate removal and inspection before any deck painting or nonskid work - if removal reveals slot damage requiring epoxy encapsulation or core replacement, that work must be completed before any deck finishing. Opening finished deck after fresh nonskid has been applied wastes material and time.
- Core repair before osmosis barrier coat application - if core replacement adjacent to a chainplate requires cutting through the outer skin, coordinate with the osmosis assessment so barrier coat is applied after, not before, any laminate work is complete.
- Full sealant cure and fastener torque before rig reinstallation - allow butyl tape to compress fully and thickened epoxy to cure completely before the rig goes back in and load is applied to the deck. Rushing this step distorts the slot edges under initial rig tension and compromises the bedding.
- Documentation before finalising insurance paperwork - time the written inspection report to reflect the final installed condition of the chainplates, not the finding-on-removal stage. Confirm the report format with your insurer before the haul-out begins.
The chainplate inspection is an early-haul-out item that unlocks or modifies downstream work. Treat it that way and a Cairns refit runs significantly more smoothly than one where chainplates are left until the end, when deck finishing may need to be reopened.
Frequently Asked Questions
How often should chainplates be removed and inspected on a boat based in Cairns?
In Far North Queensland conditions, removal and inspection every five to seven years is a more realistic interval than the ten-year guideline sometimes cited for temperate environments. If the vessel has been through any cyclone-adjacent event, a hard grounding, or sustained offshore passages since the last inspection, shorten that interval. The cost of an inspection is low relative to the cost of a rig replacement or structural deck repair.
Can I inspect chainplates myself, or does this need a professional?
Removal, visual examination and reassembly with new sealant is within reach for an experienced owner comfortable with structural hardware. However, dye penetrant testing requires specific materials and correct technique to be meaningful, dimensional checks require both tools and specification data, and the documentation that satisfies Australian marine insurer requirements must come from a qualified rigger or shipwright. For any vessel preparing to go offshore, use a professional and get it in writing.
The deck sealant around my chainplates looks perfectly sound - does it still need to come out?
Surface sealant condition tells you only that the outer bead has not cracked visibly. Water can enter through hairline failures, wicking along the plate surface from a point of entry above, or through an original installation that was never fully watertight. A chainplate that has not been removed in more than seven years on a tropical-based vessel should be treated as unknown condition regardless of what the surface looks like.
What is the difference between rebedding a chainplate and replacing it?
Rebedding means the existing plate passes dimensional and crack inspection and is reinstalled with new sealant and epoxy slot encapsulation. Replacement means the plate has failed inspection and is fabricated from new bar stock to correct specification. The deck work involved in both cases is essentially identical - the slot must be opened and the core assessed either way - so the additional cost of replacement is primarily the fabrication of the new plate.
Do Australian marine insurers actually verify chainplate documentation before approving offshore passage coverage?
Practice varies by insurer and policy type, but the trend is toward requiring documented professional inspection for offshore passage coverage, particularly beyond standard coastal limits. Before departing Cairns for the Torres Strait, Coral Sea or Timor Sea, confirm with your insurer what documentation they require and whether the report must cover the final installed condition. An undocumented chainplate failure discovered after a rig-loss claim gives an insurer grounds to decline.
Is titanium worth specifying for chainplate replacement on a cruising yacht?
Titanium offers genuine advantages - high corrosion resistance and good strength-to-weight ratio - but the fabrication cost is substantially higher than 316L bar stock, and specialist fabrication may not be available in Cairns on short notice. For most cruising yachts, correctly specified and polished 316L plate, properly bedded with butyl tape and epoxy slot encapsulation, provides reliable long-term performance. Titanium makes most sense for performance refits or vessels where weight aloft is a primary design constraint.
```
